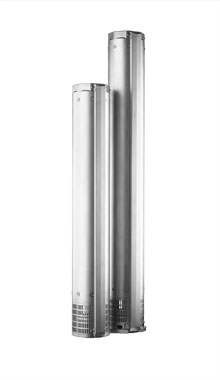

Franklin 97180475104, 8" SR Series 40HP, 475GPM

Franklin 97180475104 475SR40F86-0466 submersible pump utilizes high grade stainless steel materials for the most demanding applications. 475 GPM, 40 HP, 304 Stainless Steel.

The SR Series 8" stainless steel submersible pump utilizes high-grade stainless steel materials for the most demanding applications. Stainless steel impellers and diffusers resist corrosion, and a heavy-duty stainless steel shell assures permanent alignment of all components to increase longevity and enable higher pressures than strap designs. PTFE floating wear ring, ceramic bearing journal, and nitrile rubber fluted bearing ensure durability against wear for long-lasting performance and reliability.

Specifications:

• Model Number: 97180475104
• Franklin Model: 475SR40F86-0466
• Series: SR Series
• Material: 304 Stainless Steel
• Horsepower: 40 HP
• Rated Flow: 475 GPM
• Best Efficiency Point (approx., read from performance curve): 475 GPM at 250 ft of head
• Stages: 4
• Motor Required: 6" Motor (sold separately)

Features:

• Stainless steel impellers and diffusers to resist corrosion
• Heavy-duty stainless steel shell assures permanent alignment of all components to increase longevity and enables higher pressures than strap designs
• PTFE floating wear ring, ceramic bearing journal, and nitrile rubber fluted bearing ensure durability against wear for long-lasting performance and reliability
• Suited to operate in horizontal position
• Built-in check valve to protect the pump against water hammer
• Energy-efficient hydraulic design for cost effective operation
• Space-saving compact design
• 140 °F/60 °C (304 stainless steel) and 194 °F/90 °C (316 stainless steel) maximum operating temperature
• ANSI/NSF Standard 61
• Capacities to 650 GPM
• Heads to 1300 feet
• Efficiencies to 80%
• 100 PPM maximum allowable amount of sand

Applications:

• Industrial
• Agricultural
• Irrigation
• Commercial
