Franklin 97060150018 6" STS Series 150GPM, 50HP, 18 Stages
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

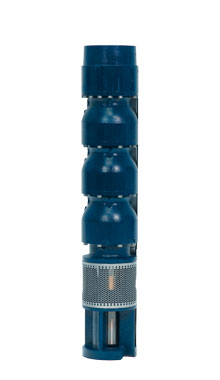

Franklin 97060150018 6" STS Series Submersible Turbine Pump. 150 GPM, 50 HP, 18 Stages, Ductile Iron.
The STS Series 6" submersible turbine pump comes with premium ductile iron casting for longer life and higher pressures, investment cast stainless steel impellers for maximum abrasion resistance, and a 416 stainless steel pump shaft ground and polished for maximum durability. Longer discharge and motor bracket bearings increase pump life, and spiral cutlass rubber intermediate bearings are designed for harsh environments.
Specifications:
- Model Number: 97060150018
- Franklin Model: 150STS50D6A-1864
- Series: STS Series
- Material: Ductile Iron
- Horsepower: 50 HP
- Rated Flow: 150 GPM
- Best Efficiency Point (approx., read from performance curve): 150 GPM at 1000 ft of head
- Stages: 18
- Discharge: 4" NPT
- 6" minimum well I.D.
- 10' minimum submergence above inlet
- 350 psi standard (675 psi double bolted) maximum working pressure
- 150 PPM maximum allowable amount of sand
Features:
- 100% Franklin factory wet tested with test results shipped with each pump
- Premium ductile iron casting for longer life and higher pressures
- Investment cast stainless steel impellers for maximum abrasion resistance
- Longer discharge and motor bracket bearings for increased pump life
- Spiral cutlass rubber intermediate bearings designed for harsh environments
- 416 stainless steel pump shaft ground and polished for maximum durability
- Custom pumps available
