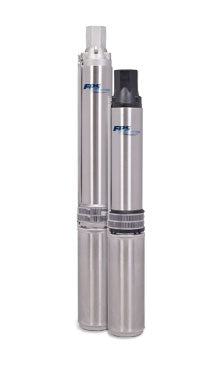

Franklin 96320500 4" 3200 Series Stainless Steel Submersible Well Pump End Only, 1/2 HP, 5 GPM
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Franklin 96320500 4" 3200 Series Stainless Steel Submersible Water Well Pump End Only. 5 GPM, 1/2 HP — motor required.
The 3200 Series submersible pumps are designed so that all parts of the pump end, including the cable guard, fall within the diameter of Franklin Electric’s industry-leading submersible 4" motor. This reduced-diameter pump end makes it ideal for installations where the well is considered encrusted or tight compared to a standard 4" well. The 3200 Series also offers a hydraulic stage design optimized for greater water and pressure output when installed at deeper well depths.
Specifications:
- Model Number: 96320500
- Franklin Model: 5FR05S4-PE
- Series: 3200 Series
- Material: Stainless Steel
- Configuration: Pump End Only (motor required)
- Horsepower: 1/2 HP
- Rated Flow: 5 GPM
- Best Efficiency Point: 5 GPM at 250 ft of head
- Stages: 13
- Discharge: 1-1/4" NPT
- Maximum Diameter (across cable guard): 3.75"
- Shipping Weight: 10 lb
Features:
- Pump diameter is smaller than a standard 4" submersible for easier installation in reduced-diameter 4" wells
- Hex rubber bearing and ceramic shaft sleeve allow sand and abrasives to pass through, virtually eliminating shaft wear and upper bearing failures
- Improved hydraulic performance for deeper set depths at all horsepower and flow ratings
- Floating stage design allows for maximum efficiency while minimizing the downthrust load transferred to the motor
- Noryl® diffuser and disc with 300 Series stainless steel thrust and eye seal protection for durability and abrasion resistance
- Scalloped/Celcon® impellers provide high performance to increase pressure output while reducing system losses from friction
- Removable spring-loaded check valve
- Stainless steel pump intake screen and stainless steel cable guard
- Maximum water temperature: 120°F / 49°C
- Powered by corrosion-resistant Franklin Electric submersible 4" motor with lightning protection
- NSF/ANSI 61 Certified
