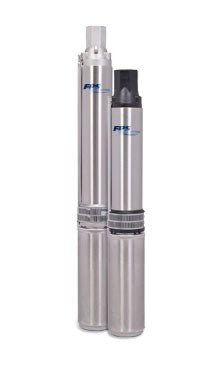

Franklin 96220703 4" Submersible Well Pump End Only 1.5HP 7GPM
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
This item is obsolete. Call for replacement
Franklin 96220703 4" 3200 Series Thermoplastic Submersible Water Well Pump. Designed so all parts of the pump end — including the cable guard — fall within the diameter of Franklin Electric’s industry-leading submersible 4" motor, making it ideal for reduced-diameter or encrusted wells, with a hydraulic stage design optimized for greater water and pressure output at deeper well depths.
Specifications:
- SKU: 96220703
- Flow Rate: 7 GPM
- Horsepower: 1-1/2 HP (motor required, sold separately)
Features:
- Pump diameter is smaller than a standard 4" submersible for easier installation in reduced diameter 4" wells
- Hex rubber bearing and ceramic shaft sleeve allows sand and abrasives to pass through, virtually eliminating shaft wear and upper bearing failures
- Improved hydraulic performance for deeper set depths at all horsepower and flow ratings
- Floating stage design allows for maximum efficiency while minimizing the down thrust load that is transferred to the motor
- Noryl® diffuser and disc with 300 Series stainless steel thrust and eye seal protection for durability and abrasion resistance
- Celcon® impeller provides high performance to increase pressure output while reducing system losses from friction
- Removable spring-loaded check valve
- Stainless steel pump intake screen and stainless steel cable guard
- Maximum water temperature: 120 °F / 49 °C
- Powered by corrosion resistant Franklin Electric submersible 4" motor with lightning protection
