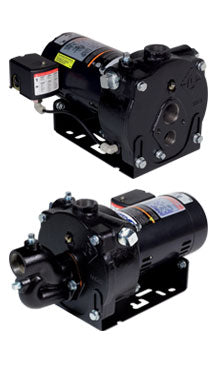

Franklin 96131007 Convertible Water Well Jet Pump 3/4HP 115/230V
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
This item is obsolete. Call for replacement
Franklin 96131007 Convertible VersaJet PRO Cast Iron Jet Pump. Configurable with a variety of pressure and flow choices in both shallow and deep-set installations, with four suction flange options for tough replacement jobs.
Specifications:
- SKU: 96131007
- Horsepower: 3/4 HP
- Voltage: 115/230 Volts
- Phase: 1 Phase
Features:
- Heavy-Duty cast-iron case ensures optimum durability and long life
- Modular Suction Flange system to retro fit current installations without disturbing the existing plumbing
- Thermoplastic Impeller and diffuser precision molded for high efficiency and dependability
- Carbon/Ceramic mechanical shaft seal ensures leak proof fit and continuous water lubrication
- Adjustable pressure switch is factory set at 30/50 psi
- Powered by high quality, industry proven, UL778 approved indoor/outdoor motor from AO Smith
- Dual voltage motor can be set to run at either 115V or 230V
- Built in drain plug for easy winterization and servicing
- Pressure gauge supplied for easy monitoring of system pressure
Connections:
- 1.25" FNPT Suction
- 1" FNPT Discharge
- 1" FNPT Drive Line
