Franklin 95412002 4" Submersible Well Pump End Only 20GPM 1HP New Model: [95952215]

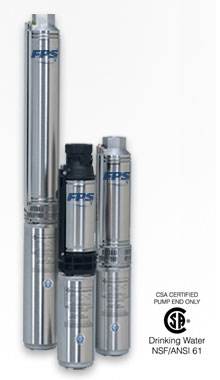

Franklin 95412002 4" Series V Thermoplastic Submersible Water Well Pump. 20 Gallons per Minute, 1 Horsepower motor required This submersible pump features unique hydraulics that improve efficiency and minimize wear even when pumping abrasives. Discharge and motor brackets are available in thermoplastic or stainless steel with a removable check valve system. Available in 5, 7, 10, 15, 20 and 25 gpm, 1/2 - 5 horsepower. Features: 6 performance ranges: 5, 7, 10, 15, 20 & 25 gpm Horsepower ranges: 1/2 – 5 Discharge head and motor bracket produced with industry proven, engineered materials. Available in 300 series stainless steel or high quality thermoplastic resins. Large wrench flat area on the discharge head for ease of installation Dry run designed top bearing positively supports the 300 series stainless steel 7/16” hex shaft Removable internal check valve Powered by Franklin Electric’s proven 4" submersible motor Maximum water temperature with proper flow is 120 °F/49 °C. Consult factory for details.
