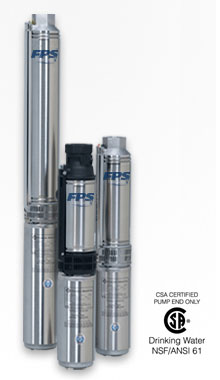

Franklin 95401035 4" Series V Thermoplastic Submersible Well Pump & Motor, 1/2 HP, 10 GPM, 230V, 3-Wire
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Franklin 95401035 4" Series V Thermoplastic Submersible Water Well Pump. 10 GPM, 1/2 HP, 230V, 3-Wire.
This submersible pump features unique hydraulics that improve efficiency and minimize wear even when pumping abrasives. Discharge and motor brackets are available in thermoplastic or stainless steel with a removable check valve system. Available in 10, 15, 20 and 25 GPM, 1/2-5 horsepower.
Specifications:
- Model Number: 95401035
- Franklin Model: 10FV05P4-3W230
- Series: Series V
- Material: Thermoplastic
- Configuration: Complete Pump & Motor Assembly (motor included)
- Horsepower: 1/2 HP
- Rated Flow: 10 GPM
- Best Efficiency Point: 10 GPM at 150 ft of head
- Stages: 6
- Voltage: 230V
- Wire Configuration: 3-Wire
- Discharge: 1-1/4" NPT
- Maximum Diameter (across cable guard): 3.90"
- Compatible Control Box: 2801054915
- Shipping Weight: 26 lb
Features:
- Four performance ranges: 10, 15, 20, and 25 GPM
- Horsepower ranges: 1/2 – 5
- Discharge head and motor bracket produced with industry-proven, engineered materials, available in 300 Series stainless steel or high-quality thermoplastic resins
- Large wrench flat area on the discharge head for ease of installation
- Dry-run designed top bearing positively supports the 300 Series stainless steel 7/16" hex shaft
- Removable internal check valve
- Powered by Franklin Electric corrosion-resistant super stainless 4" submersible motors with lightning protection
- Maximum water temperature with proper flow is 120°F / 49°C. Consult factory for details
- NSF/ANSI 61 Certified
