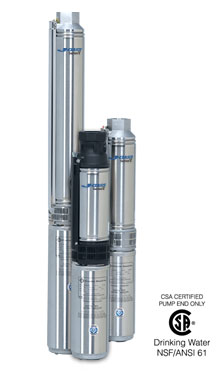

Franklin 95202545 4" J-Class, Series V Thermoplastic Submersible Well Pump & Motor, 1 HP, 25 GPM, 230V, 3-Wire
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Franklin 95202545 4" Submersible Thermoplastic Water Well Pump and Motor, J-Class, Series V, 1 Horsepower, 25 Gallons Per Minute, 230 Volts, 3 Wire.
This submersible pump features unique hydraulics that improve efficiency and minimize wear even when pumping abrasives.
Specifications:
- Model Number: 95202545
- Series: J-Class, Series V
- Material: Thermoplastic
- Configuration: Complete Pump & Motor Assembly (motor included)
- Horsepower: 1 HP
- Rated Flow: 25 GPM
- Voltage: 230V
- Wire Configuration: 3-Wire
Features:
- Discharge head and motor bracket produced with industry proven, engineered materials
- Large wrench flat area on the discharge head for ease of installation
- Dry run designed top bearing positively supports the 300 series stainless steel 7/16" hex shaft
- Removable internal check valve
- Powered by Franklin Electric's proven 4" submersible motor
- Maximum water temperature with proper flow is 120 °F/49 °C. Consult factory for details
