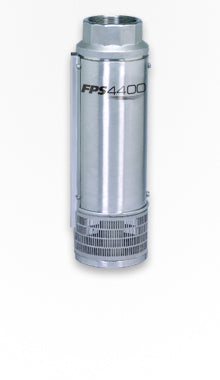

Franklin 94822507 6" Tri-Seal High Capacity Submersible Well Pump End, 125GPM, 15HP
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Franklin 94822507 6" Tri-Seal High Capacity Submersible Water Well Pump End. 125 GPM, 15 HP — motor required.
The 6" Tri-Seal High Capacity submersible pump is ideal for farm, home, irrigation, industry, municipal, and commercial applications, equipped with the power, performance, and reliability you expect from Franklin Electric. Flow ratings of 50, 75, 100, and 125 GPM with TDH up to 1400 ft. Horsepower ranges from 1-1/2 to 40 HP.
Specifications:
- Model Number: 94822507
- Franklin Model: 125FA15S6-PE
- Series: Tri-Seal High Capacity
- Configuration: Pump End Only (motor required)
- Horsepower: 15 HP
- Rated Flow: 125 GPM
- Best Efficiency Point: 125 GPM at 295 ft of head
- Stages: 8
- Discharge: 3" NPT
- Shipping Weight: 36 lb
- Length: 25.4 in
Features:
- Heavy-duty stainless steel discharge head and motor bracket
- Stainless steel shaft, shell, intake screen, and cable guard provide corrosion resistance and longer pump life
- High-flow hydraulic staging allows for maximum pump output, exceeds all energy efficiency standards, and provides increased product longevity
- Glass-filled modified PPO impeller stage assemblies provide exceptional strength and durability
- Ceramic shaft sleeve and rubber discharge bearing minimize bearing wear and shaft misalignment
- 3" NPT heavy-duty stainless steel discharge head
- Modular motor bracket enabling 4" or 6" motor mount for 5-10 HP units
- NSF/ANSI 61 Certified
