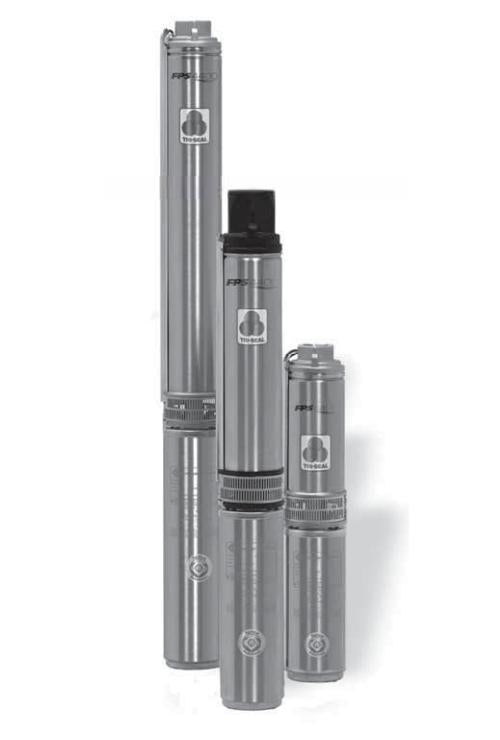

Franklin 93822030 4" Tri-Seal Stainless Steel Submersible Well Pump End Only, 3 HP, 20 GPM
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Franklin 93822030 4" Tri-Seal Stainless Steel Submersible Water Well Pump End Only. 20 GPM, 3 HP — motor required.
The Tri-Seal 4" submersible pump features the Tri-Seal floating stage system, which further improves efficiency and protects against wear when pumping abrasives.
Specifications:
- Model Number: 93822030
- Franklin Model: 20FA3S4-PE
- Series: Tri-Seal
- Material: Stainless Steel
- Configuration: Pump End Only (motor required)
- Horsepower: 3 HP
- Rated Flow: 20 GPM
- Best Efficiency Point: 20 GPM at 420 ft of head
- Stages: 16
- Discharge: 1-1/4" NPT
- Maximum Diameter (across cable guard): 3.90"
- Shipping Weight: 14 lb
Features:
- 300 Series stainless steel hub floats with the impeller maintaining a positive seal
- Phenolic washer provides downthrust protection
- Scalloped impellers provide high-efficiency performance and abrasion resistance
- Advanced thermoplastic diffuser and disc — proven abrasion-resistant material
- Floating stage design allows the impeller to float independently
- Removable, spring-loaded check valve
- Maximum water temperature: 120°F / 49°C
- Ceramic shaft sleeve and rubber discharge bearing protect the shaft and eliminate sand wear
- Powered by Franklin Electric corrosion-resistant super stainless 4" submersible motors with lightning protection
- Patented impeller hub seal system seals radially and axially to prevent fluid recirculation, providing high performance in the harshest conditions
- NSF/ANSI 61 Certified
