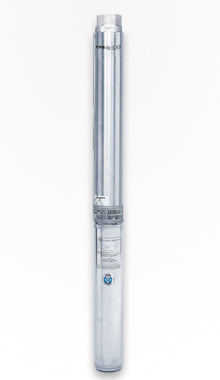

Franklin 93613606 4" Tri-Seal High Capacity Stainless Steel Submersible Well Pump & Motor, 1 HP, 35 GPM, 230V, 2-Wire

Franklin 93613606 4" Tri-Seal High Capacity Stainless Steel Submersible Water Well Pump. 35 GPM, 1 HP, 230V, 2-Wire.

The Tri-Seal High Capacity 4" submersible pump uses high-flow hydraulic staging for maximum pump output, exceeding all energy-efficiency standards, and is built for high-horsepower, high-performance well installations.

Specifications:

• Model Number: 93613606
• Franklin Model: 35FH1S4-2W230
• Series: Tri-Seal High Capacity
• Material: Stainless Steel
• Configuration: Complete Pump & Motor Assembly (motor included)
• Horsepower: 1 HP
• Rated Flow: 35 GPM
• Best Efficiency Point: 35 GPM at 120 ft of head
• Stages: 5
• Voltage: 230V
• Wire Configuration: 2-Wire
• Discharge: 2" NPT
• Maximum Diameter (across cable guard): 3.90"
• Shipping Weight: 32 lb

Features:

• Four performance ranges: 35, 45, 60, and 90 GPM
• 2" NPT discharge, with and without an internal stainless steel wafer-style check valve
• Stainless steel discharge head and motor bracket
• High-flow hydraulic staging allows for maximum pump output, exceeds all energy efficiency standards, and provides increased product longevity
• Ceramic shaft sleeve and rubber discharge bearing eliminates sand wear
• Intermediate bearing for increased shaft stability when pump lengths dictate on high-horsepower, high-performance constructions
• Impeller eye and hub seals for improved performance and efficiency
• Stainless steel hex pump shaft, shell, and shaft coupling
• High-capacity upthrust assembly for protection during start-up and operation (35, 45, 60, and 90 GPM models)
• Designed for optimal performance when powered by Franklin’s corrosion-resistant 4" submersible motors
• NSF/ANSI 61 Certified
