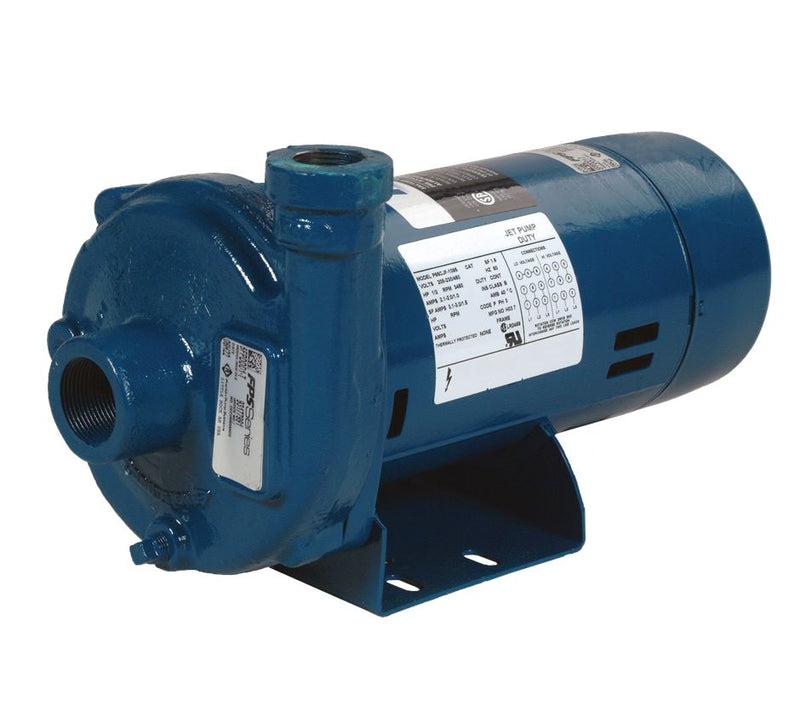

Franklin 93160327 Centrifugal Self Priming Irrigation Pump 3HP 1
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
This item is obsolete. Call for replacement
Franklin 93160327 Close Coupled D Series Centrifugal End Suction Pump.
Specifications:
- SKU: 93160327
- Horsepower: 3 HP
- Suction: 1-1/2"
- Discharge: 1"
- Phase: 1 Phase
- Voltage: 230 Volts
Features:
- Heavy-duty cast iron body for increased durability
- DA1A models have stainless steel impellers; DA1B through DB2 have a bronze impeller; DB3 and DC4 have a cast iron impeller
- 1/2-2HP models have 56C frame motors with shaft coupling design for easy removal of the pump motor
- 5-50HP models have JM frame motors with shaft sleeve/O-ring design for added protection against shaft damage
- 3HP models can use either JM frame or 56 frame motors
- Single- or three-phase motors available on selected models
- Seal: standard carbon/ceramic faces, BUNA elastomers, and 300 series stainless components
- All units are equipped with open drip-proof motors
Applications:
- Irrigation
- Commercial
- Construction
- Municipal
- Light Industrial
General Services Specifications:
- Capacities: to 650 GPM
- Heads: to 300 feet
- Working Pressure: 150 psi
- Temperature: maximum 212°F
- Rotation: clockwise, viewed from motor end
- Pipe Connections: NPT, 4 x 5 Flanged
