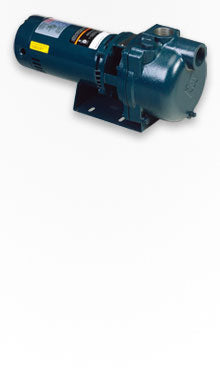

Franklin 92980020 Self Priming Pump 2HP 230V

Franklin 92980020 TurfBoss Centrifugal Self-Priming Irrigation Pump.

Specifications:

• SKU: 92980020
• Horsepower: 2 HP
• Voltage: 230 Volts
• Suction: 1-1/2"
• Discharge: 1-1/2"

Features:

• Self-priming design, with the ability to lift water from a depth of 25'
• Easily serviced through a back pull-out design, which leaves the plumbing and both the pump's base and case undisturbed in their original location
• Rugged pump case constructed with heavy-duty cast iron ensures optimum durability, quiet operation, and long life
• Hydraulic components molded with Noryl® thermoplastic, which, coupled with the floating stainless steel impeller eye seal, ensures dependable and efficient operation
• Industry-proven indoor and outdoor 56-J motors from A.O. Smith
• 1 and 1.5 HP motors are dual voltage, set to run with either 115 or 230V incoming power (2 HP is 230V only)
• Mechanical shaft seal allows positive protection against leaking
• Built-in drain plug for easy winterizing and servicing
• Shut-off pressures up to 130 feet, and flow rates to 70 GPM
• Handles water temperatures up to 120°F
• Integral 1" NPT priming plug
• 1.5" NPT suction, 1.5" NPT discharge

Applications:

• Irrigation
• Construction
• Commercial
• Municipal
• Light Industrial
• Residential

Water Transfer Specifications:

• Capacities: to 70 GPM
• Heads: to 130 feet
• Working Pressure: 75 psi max
• Temperature: 120°F max
• Rotation: clockwise, viewed from motor end
• Pipe Connections: NPT
