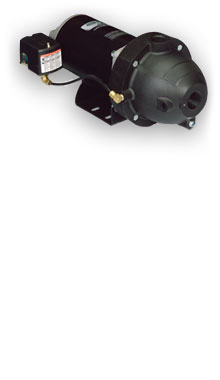

Franklin 91090007 Shallow Water Well Jet Pump 3/4HP 115/230V
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Franklin 91090007 SWJ Series Shallow Water Well Thermoplastic Jet Pump.
Specifications:
- SKU: 91090007
- Horsepower: 3/4 HP
- Voltage: 115/230 Volts
- Phase: 1 Phase
Features:
- Available in non-corrosive thermoplastic
- Replaceable in-line nozzle/venturi design for maximum hydraulic efficiency and ease of service
- Self-cleaning, anti-clogging injector screen
- Thermoplastic impeller and diffuser ensure increased hydraulic performance
- Floating stainless steel eye seal for maximum performance and efficiency
- Square-flange mounting provides easy serviceability without disturbing the plumbing
- Built-in drain plug for easy winterizing and servicing
- Mechanical shaft seal allows positive protection against leaking
- Order pressure gauge separately
- Pressure switch is installed and set at 30/50 psi
- Handles water temperatures up to 120°F and working pressure up to 75 psi
Connections:
- 1" FNPT discharge
- 1.25" FNPT suction
