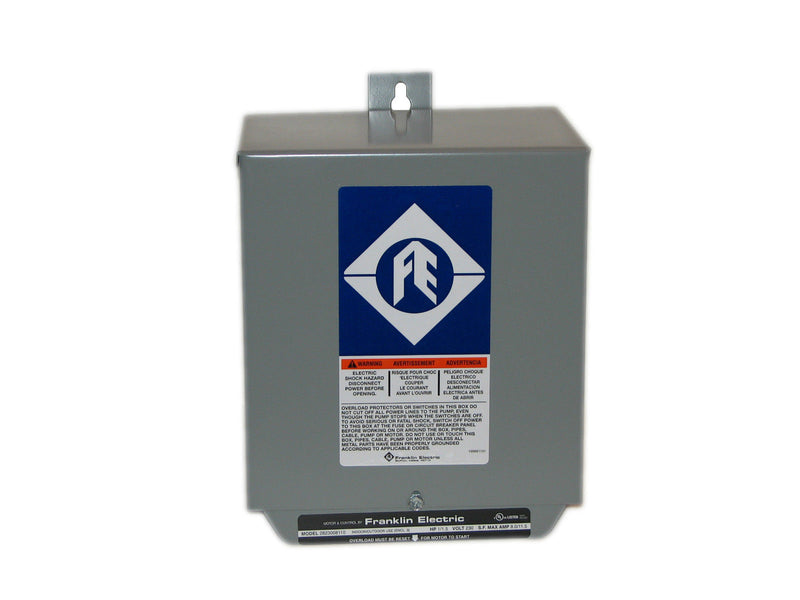

Franklin 2822539010 Standard Control Box, 5 HP, 220V, 50Hz, 1-Phase
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Franklin 2822539010 Standard Control Box, 5 HP (3.7 kW), 220V, 50Hz, Single-Phase. Franklin single-phase controls are designed and optimized specifically for Franklin Electric motors — controls are an integral part of a submersible motor power system, and rigorous component testing ensures the most robust products in the industry.
Standard and Deluxe boxes are for 1.5-15 HP single-phase water systems that use standard/heavy-duty pressure switches, level switches, or other pilot devices. Deluxe boxes contain a magnetic line contactor carefully matched to the motor rating, eliminating the need for an external line contactor.
Specifications:
- Model Number: 2822539010
- Box Type: Standard
- Horsepower: 5 HP (3.7 kW)
- Voltage: 220V
- Frequency: 50 Hz
- Phase: 1-Phase
- Enclosure Rating: NEMA 3R, IP23
- Terminal Block: 5 terminals, up to AWG #2 wire
- Magnetic Contactor: Not included
- Enclosure Dimensions (W x H x L): 8.125" x 6.25" x 18"
- Shipping Weight: 8 lb
Key Features:
- Heavy-duty, box-type terminals accept up to AWG #2 wire
- External access to overload resets
- Multiple-size knockouts
- User-friendly connection diagrams
- Easy access to grounding lugs
- Suitable for outdoor mounting
- Capacitor start/run design
- CSA certified
