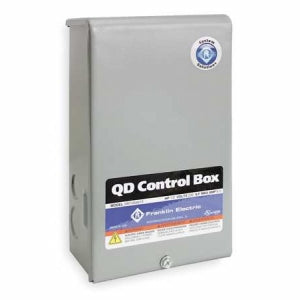

Franklin 2801034915 Quick Disconnect (QD) Control Box, 1/3 HP, 230V, 60Hz, 1-Phase
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Franklin 2801034915 Quick Disconnect (QD) Control Box, 1/3 HP (0.25 kW), 230V, 60Hz, Single-Phase. Franklin single-phase controls are designed and optimized specifically for Franklin Electric motors — controls are an integral part of a submersible motor power system, and rigorous component testing ensures the most robust products in the industry.
These highly engineered control boxes are designed for use with Franklin 3-wire, single-phase submersible motors from 1/3 to 1 HP. Quick Disconnect (QD) boxes make troubleshooting simple by automatically disconnecting the control components from the system when the lid is removed. Solid-state switching, with the QD Relay, provides longer life than voltage relays and improves system operation. QD and Capacitor Run Control (CRC) boxes offer the same functionality, but CRC boxes add a run capacitor for smoother motor operation.
Specifications:
- Model Number: 2801034915
- Box Type: Quick Disconnect (QD)
- Horsepower: 1/3 HP (0.25 kW)
- Voltage: 230V
- Frequency: 60 Hz
- Phase: 1-Phase
- Enclosure Rating: NEMA 3R, IP23
- Terminal Block: 5 terminals, up to AWG #10 wire
- Magnetic Contactor: Not included
- Enclosure Dimensions (W x H x L): 5.5" x 3.25" x 9"
- Shipping Weight: 4 lb
Key Features:
- Exclusive Franklin Electric QD Relay
- Suitable for outdoor mounting
- Capacitor start design
- UL listed for US and Canada
