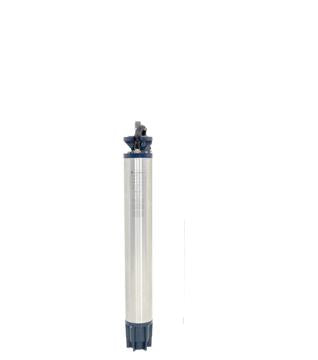

Franklin 2791829004 8" 3P Submersible Model 60HP, 380V, 60HZ

This item is obsolete. Contact us for replacement

Franklin 2791829004 8" 3P Submersible Model 60HP, 380V, 60HZ High Temp 75 C

• Franklin's 6-inch and 8-inch submersible motors are typically used in large demanding water wells requiring high flow rates or deeper installations. These motors are tough, built to last, and come in a variety of construction options:
• Standard - for most water wells
• Sand Fighter - for wells with high levels of abrasives
• Hi-Temp - for hot water and other harsh conditions
• Stainless Steel - for aggressive water
• These motors provide large amounts of water for irrigation, community water systems, and factories where large flows or pressures are required. We understand how important it is to produce reliable systems to avoid significant costs due to failure or downtime. Typical applications that rely on our motors include:
• Agricultural
• Municipal
• Industrial
• Mining
• Booster
• Reverse Osmosis
• Oil & Gas
• Applications
• These motors are built for dependable operation in vertical 8" diameter or larger water wells.

Features:

• Full 3525 RPM 60 Hz design point for superior pump head and flow yield
• Maximum temperature winding wire NEMA Class 200
• Double flange design for ease of handling and pump mounting
• Splined shaft for maximum shaft and coupling contact
• Resin encapsulated windings
• Hermetically-sealed stator
• Copper bar rotor provides consistent design performance
• Carbon ceramic rotating face seal
• Kingsbury-type water-lubricated thrust bearing
• Pressure-equalizing diaphragm
• Water-Bloc lead connection
• 3-lead and 6-lead (wye-delta) configurations
• Pre-filled with temperature-resistant fill solution
• Sand fighting slinger
• Equipped with Subtrol heat sensor
• Worldwide availability
