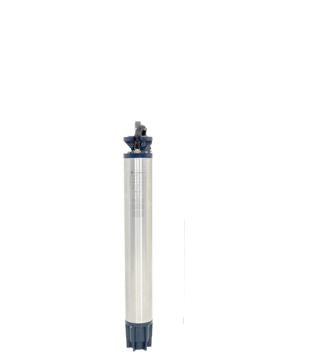

Franklin 2791039004 8" Submersible Motor 75HP 3PH 460/380V 60/50HZ Hi-Temp 75°C
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Franklin 2791039004 8" Submersible Motor. 75 HP, 3-Phase, 460/380V, 60/50Hz, Hi-Temp 75 °C.
The Franklin 8" Submersible Motor is built for dependable operation in vertical 8" diameter or larger water wells.
Hi-Temp 75°C construction is rated for continuous duty up to 167°F (75°C) water temperature at 0.5 ft/sec flow past the motor, and up to 86°F (30°C) with no flow in wells 12" or larger in diameter.
Specifications:
- Model Number: 2791039004
- Construction: Hi-Temp 75 °C
- Horsepower: 75 HP
- Phase: 3-Phase
- Voltage: 460/380 V
- Frequency: 60/50 Hz
- Service Factor: 1.15/1.0
- Motor Lead / Starting: DOL (3)
- Thrust Rating: 12500 lbs
- Shipping Weight: 700 lbs
Basic Features:
- Double flanged NEMA mounting design
- Stainless steel splined shaft
- StatorShield™ six feature encapsulation system
- High-capacity, Kingsbury-type, water lubricated thrust bearing
- Factory filled with Franklin’s non-toxic water soluble fill solution
- Field replaceable lead using Franklin’s exclusive Water-Bloc™ technology
- Full 3,525 rpm 60 Hz design point
- External sand slinger on shaft
- Mechanical face seal at shaft exit
- Copper bar rotor
- All models are variable frequency drive (VFD) compatible
- Franklin’s exclusive on-winding SubTrol™ heat sensor for use with SubMonitor Connect™
