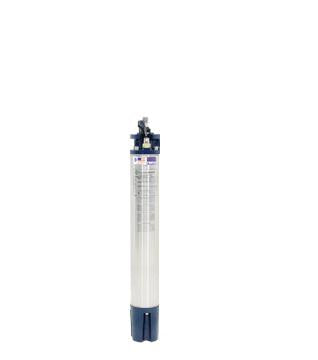

Franklin 2767170103 6" Submersible Motors 3PH 40HP 460V 60/50HZ
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Franklin 2767170103 6" Submersible Motor. 40 HP, 3-Phase, 460V, 60/50Hz, Hi-Temp 90°C.
Franklin's 6-inch and 8-inch submersible motors are typically used in large demanding water wells requiring high flow rates or deeper installations. These motors are tough, built to last, and come in a variety of construction options: Standard (for most water wells), Sand Fighter (for wells with high levels of abrasives), Hi-Temp (for hot water and other harsh conditions), and Stainless Steel (for aggressive water). These motors provide large amounts of water for irrigation, community water systems, and factories where large flows or pressures are required.
Specifications:
- Model Number: 2767170103
- Construction: Hi-Temp 90°C
- Horsepower: 40 HP
- Phase: 3-Phase
- Voltage: 460 V
- Frequency: 60/50 Hz
- Note: exact factory ordering data (thrust rating, motor lead type, shipping weight) for this specific SKU could not be verified against the current Franklin Electric 6" Submersible Motors catalog; specifications above are drawn from the existing product listing only.
Features:
- Up to 194 F (90 C) ambient temperature
- 25% increase in upthrust capability at 30 C
- 25% increase in down thrust capability at 30 C
- Wet well, reservoir, low flow approved in 12" diameter or larger wells with ambient water up to 86 F (30 C)
- High temperature leads
- Hermetically-sealed stator
- Innovative high temperature winding encapsulation system
- FE water soluble, high temperature bearing lubrication
- Double-flange NEMA mounting for ease of handling and pump mounting
- Stainless steel splined shaft for maximum shaft/coupling contact
- Full 3450 RPM 60 Hz design point for superior pump performance
- Sand Fighter sealing system
- Franklin Electric's exclusive Water Bloc lead connection
- 316 SS and wye-delta designs available - consult factory
These motors are built for dependable operation in 6" diameter or larger water wells, in applications with higher temperature, high thrust or low flow.
Typical Applications:
- Agricultural
- Municipal
- Industrial
- Mining
- Booster
- Reverse Osmosis
- Oil & Gas
