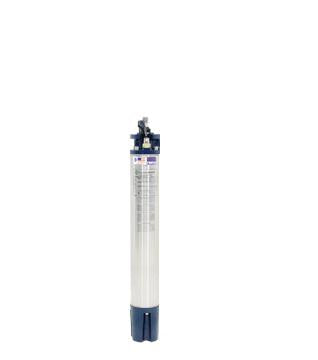

Franklin 2766250103 6" Submersible Motor 3PH, 25HP, 575V,60HZ

This item is obsolete. Contact us for replacement

Franklin 2766250103 6" Submersible Motor 3PH, 25HP, 575V,60HZ High Temp 90 C

• Franklin's 6-inch and 8-inch submersible motors are typically used in large demanding water wells requiring high flow rates or deeper installations. These motors are tough, built to last, and come in a variety of construction options:
• Standard - for most water wells
• Sand Fighter - for wells with high levels of abrasives
• Hi-Temp - for hot water and other harsh conditions
• Stainless Steel - for aggressive water
• These motors provide large amounts of water for irrigation, community water systems, and factories where large flows or pressures are required. We understand how important it is to produce reliable systems to avoid significant costs due to failure or downtime. Typical applications that rely on our motors include:
• Agricultural
• Municipal
• Industrial
• Mining
• Booster
• Reverse Osmosis
• Oil & Gas
• Applications
• These motors are built for dependable operation in 6" diameter or larger water wells, in applications with higher temperature, high thrust or low flow.

Features:

• Up to 194 F (90 C) ambient temperature
• 25% increase in upthrust capability at 30 C
• 25% increase in down thrust capability at 30 C
• Wet well, reservoir, low flow approved in 12" diameter or larger wells with ambient water up to 86 F (30 C)
• High temperature leads
• Hermetically-sealed stator
• Innovative high temperature winding encapsulation system
• FE water soluble, high temperature bearing lubrication
• Double-flange NEMA mounting for ease of handling and pump mounting
• Stainless steel splined shaft for maximum shaft/coupling contact
• Full 3450 RPM 60 Hz design point for superior pump performance
• Sand Fighter sealing system
• Franklin Electric's exclusive Water Bloc lead connection
• 316 SS and wye-delta designs available - consult factory
