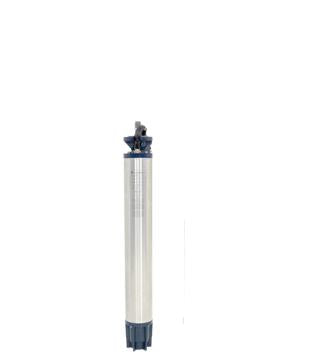

Franklin 2396628521, 8" Submersible Model, 60HP, 380V, 60HZ

Franklin 2396628521 8" Submersible Motor. 60 HP, 3-Phase, 380V, 60Hz, Sand Fighter®.

Franklin's 6-inch and 8-inch submersible motors are typically used in large demanding water wells requiring high flow rates or deeper installations. These motors are tough, built to last, and come in a variety of construction options: Standard (for most water wells), Sand Fighter (for wells with high levels of abrasives), Hi-Temp (for hot water and other harsh conditions), and Stainless Steel (for aggressive water). These motors provide large amounts of water for irrigation, community water systems, and factories where large flows or pressures are required.

Specifications:

• Model Number: 2396628521
• Construction: Sand Fighter®
• Horsepower: 60 HP
• Phase: 3-Phase
• Voltage: 380 V
• Frequency: 60 Hz
• Note: exact factory ordering data (thrust rating, motor lead type, shipping weight) for this specific SKU could not be verified against the current Franklin Electric 8" Submersible Motors catalog; specifications above are drawn from the existing product listing only.

Features:

• Full 3525 RPM 60 Hz design point for superior pump head and flow yield
• Maximum temperature winding wire NEMA Class 200
• Double flange design for ease of handling and pump mounting
• Splined shaft for maximum shaft and coupling contact
• Resin encapsulated windings
• Hermetically-sealed stator
• Copper bar rotor provides consistent design performance
• Carbon ceramic rotating face seal
• Kingsbury-type water-lubricated thrust bearing
• Pressure-equalizing diaphragm
• Water-Bloc lead connection
• 3-lead and 6-lead (wye-delta) configurations
• Pre-filled with temperature-resistant fill solution
• Sand fighting slinger
• Equipped with Subtrol heat sensor
• Worldwide availability

These motors are built for dependable operation in vertical 8" diameter or larger water wells.

Typical Applications:

• Agricultural
• Municipal
• Industrial
• Mining
• Booster
• Reverse Osmosis
• Oil & Gas
