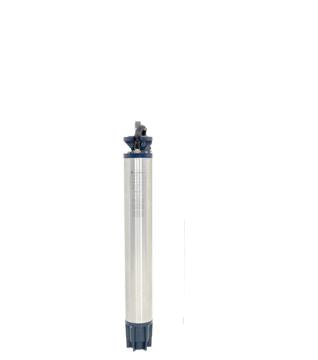

Franklin 2391178504 8" Submersible Motor 175HP 3PH 575V 60HZ Sand Fighter
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Franklin 2391178504 8" Submersible Motor. 175 HP, 3-Phase, 575V, 60Hz, Sand Fighter®.
The Franklin 8" Submersible Motor is built for dependable operation in vertical 8" diameter or larger water wells.
Sand Fighter® construction is equipped with Franklin’s exclusive Sand Fighter® sealing system for sand or other abrasives.
Specifications:
- Model Number: 2391178504
- Construction: Sand Fighter®
- Horsepower: 175 HP
- Phase: 3-Phase
- Voltage: 575 V
- Frequency: 60 Hz
- Service Factor: 1.15
- Motor Lead / Starting: DOL (3)
- Thrust Rating: 10000 lbs
- Shipping Weight: 945 lbs
Basic Features:
- Double flanged NEMA mounting design
- Stainless steel splined shaft
- StatorShield™ six feature encapsulation system
- High-capacity, Kingsbury-type, water lubricated thrust bearing
- Factory filled with Franklin’s non-toxic water soluble fill solution
- Field replaceable lead using Franklin’s exclusive Water-Bloc™ technology
- Full 3,525 rpm 60 Hz design point
- External sand slinger on shaft
- Mechanical face seal at shaft exit
- Copper bar rotor
- All models are variable frequency drive (VFD) compatible
- Franklin’s exclusive on-winding SubTrol™ heat sensor for use with SubMonitor Connect™
