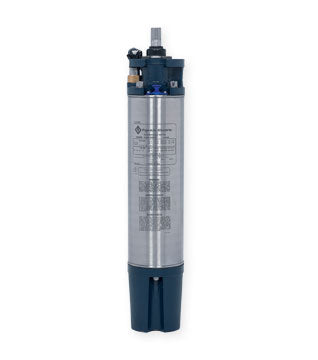

Franklin 2363149020 3Phase Dual-Voltage Model, 20HP, 60HZ

This item is obsolete. Call for replacement

Franklin 2363149020 6" Volt-X Dual-Voltage Submersible Motor, 20HP, 3-Phase, 60 Hz — built for large, demanding water wells requiring high flow rates or deeper installations. A voltage exchange device lets the motor run on either 230V or 460V, three-phase, 60 Hz power.

Specifications:

• SKU: 2363149020
• Horsepower: 20 HP
• Voltage: 230V / 460V (dual-voltage)
• Phase: 3-Phase
• Frequency: 60 Hz
• SubTrol Heat Sensor: Not included (available on Sand Fighter models)

Applications:

• Dependable operation in 6" diameter or larger water wells, in applications with higher temperature, high thrust, or low flow

Basic Features:

• Innovative Volt-X voltage exchange device
• Maximum temperature winding wire NEMA class 200
• Anti-track self-healing resin system
• Hermetically-sealed windings
• Removable Water-Bloc lead
• Double flange design
• Stainless steel splined shaft
• Kingsbury-type water lubricated thrust bearing
• Pressure equalizing diaphragm
• Sand slinger
• 3-lead configuration
• Copper bar rotor
• Full 3450 RPM design point
• Filter check valve

Special Options: Sand Fighter Models are equipped with:

• Franklin's Exclusive Sand Fighter Sealing System for sand or other abrasives well water.
• Franklin's Exclusive on winding SubTrol heat sensor for use with SubMonitor.
• SubMonitor is a state-of-the-art electronic motor overload that is sold separately.
• Mounts in the above ground panel requiring no additional wiring to the motor.
• User friendly, field proven.
• Protection monitors for balanced power, overload, underload, overheating, rapid cycling and more.
• Can be used with or without a SubTrol heat sensor.
• Supplies superior heat protection when manufactured with the SubTrol heat sensor.
