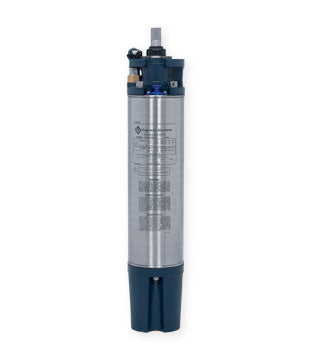

Franklin 2363148120 3Phase Dual-Voltage Models 20HP, 60HZ

Franklin 2363148120 3Phase Dual-Voltage Models 20HP, 60HZ Sandfighter With Subtrol

Franklin's 6-inch and 8-inch submersible motors are typically used in large demanding water wells requiring high flow rates or deeper installations. These motors are tough, built to last, and come in a variety of construction options.

6-inch Volt-X motors are built with a unique dual voltage feature offering power supply flexibility. The motors utilize an innovative voltage change device that allows the motor to be connected for operation in either 230 V or 460 V, three-phase, 60 Hz power supplies. The voltage exchange device has been meticulously developed for ease of removal and a watertight seal every time.

These motors are built for dependable operation in 6" diameter or larger water wells, in applications with higher temperature, high thrust or low flow.

Basic Features:

• Innovative Volt-X voltage exchange device
• Maximum temperature winding wire NEMA class 200
• Anti-track self-healing resin system
• Hermetically-sealed windings
• Removable Water-Bloc lead
• Double flange design
• Stainless steel splined shaft
• Kingsbury-type water lubricated thrust bearing
• Pressure equalizing diaphragm
• Sand slinger
• 3-lead configuration
• Copper bar rotor
• Full 3450 RPM design point
• Filter check valve

Special Options:

Sand Fighter Models are equipped with:

• Franklin's Exclusive Sand Fighter Sealing System for sand or other abrasives well water.
• Franklin's Exclusive on winding SubTrol heat sensor for use with SubMonitor.
• SubMonitor is a state-of-the-art electronic motor overload that is sold separately.
• Mounts in the above ground panel requiring no additional wiring to the motor.
• User friendly, field proven.
• Protection monitors for balanced power, overload, underload, overheating, rapid cycling and more.
• Can be used with or without a SubTrol heat sensor.
• Supplies superior heat protection when manufactured with the SubTrol heat sensor.
