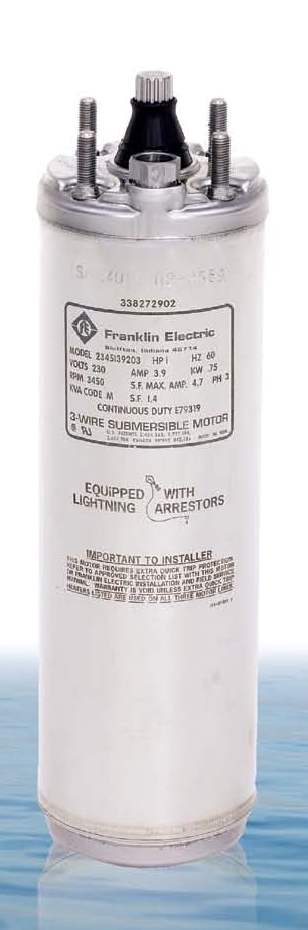

Franklin 2343288702G 4" Submersible Three-Phase Motor, 7.5 HP, 460/380V, Oil Stripper

Franklin 2343288702G 4" Submersible Three-Phase Motor, 7.5 HP, 460/380V, 60/50 Hz, Oil Stripper

• Horsepower: 7.5 HP
• Voltage: 460/380V
• Phase / Wiring: Three-Phase
• Frequency: 60/50 Hz
• Service Factor: 1.15/1.0
• Construction / Series: Oil Stripper
• Motor lead: included
• Thrust Bearing Rating: 1500 lb
• Shipping Weight: 71 lb
• Motor Diameter: 3.75 in (fits standard 4-inch well casing)

The Franklin 4-inch Super Stainless motor has been the driving force behind residential and light commercial submersible pumps for decades. Designed and patented in 1950 by our founder, Ed Schaefer, this motor has proven to be the industry's most trusted residential pump motor.

Franklin offers 4-inch motors in a full line of single- and three-phase voltages, frequencies, and application-specific models. Wherever there is an independent source of clean groundwater, you can find a Franklin motor. These motors are built for dependable operation in 4" diameter or larger water wells.

Typical Applications:

• Homes
• Farms
• Restaurants
• Schools
• Small Factories
• Coalbed Methane Recovery
• Car Washes
• Fountains

Features:

• Corrosion-resistant stainless steel exterior
• Stainless steel splined shaft
• Hermetically-sealed windings
• StatorShield™ resin system
• Filter check valve
• Water lubrication
• Kingsbury-type thrust bearing
• Pressure-equalizing diaphragm
• Built-in lightning arrestors (all single-phase; 200 & 300 V three-phase)
• Removable Water-Bloc™ lead
• Franklin-manufactured control boxes available for single-phase motors
• UL 778 recognized (North American voltages)
• CSA certified
• ANSI/NSF 61 certified
• Industry standard NEMA mounting dimensions

Special Features:

• Flow inducer sleeve not required in water up to 86°F (30°C) for motors through 2 hp.
• Three-wire motors through 1 hp use Franklin's exclusive three-wire QD (Quick Disconnect) Control Box with the patented QD Relay. This relay provides the ultimate in operational life.
• Single-phase motors can be used with Pumptec products to protect against dry-run and other installation conditions that can damage motors and/or pumps.

Constant Pressure Options:

Use Franklin's MonoDrive controller with 1½ hp three-wire single-phase motors, or a SubDrive controller with three-phase motors, to provide constant water pressure.

Backed by Franklin Electric's standard limited warranty (12 months from installation / 24 months from manufacture, per franklinwater.com).
