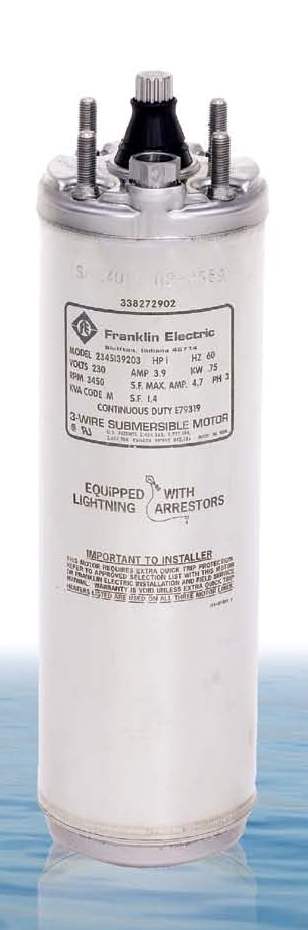

Franklin 2343158600G 4" High Thrust Submersible Well Motor, 2 HP, 230V, 3-Phase
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Franklin 2343158600G 4" High Thrust Submersible Well Motor, 2 HP, 230V, 60 Hz, 3-Phase. Built on Franklin’s proven 4-inch submersible platform with a reinforced Kingsbury-type thrust bearing for demanding, high-thrust well applications.
Specifications:
- Model Number: 2343158600G
- Category: Water Well
- Motor Series: High Thrust
- Horsepower: 2 HP
- Voltage: 230V
- Frequency: 60 Hz
- Phase: 3-Phase
- Wire Configuration: 3-Wire
- Service Factor: 1.25
- Full-Load Speed: 3450 RPM (2-pole)
- Thrust Bearing Rating: 1500 lb
- Motor Lead: Sold without lead — order lead/cable separately
- Diameter: 3.75"
- Shipping Weight: 44 lb
Basic Features:
- Corrosion-resistant stainless steel exterior
- Stainless steel splined shaft
- Hermetically-sealed windings
- StatorShield™ resin system
- Filter check valve
- Water lubrication
- Kingsbury-type thrust bearing
- Pressure-equalizing diaphragm
- Built-in lightning arrestors (all single-phase; 200 & 300 V three-phase)
- Removable Water-Bloc™ lead
- Franklin-manufactured control boxes available for single-phase motors
- UL 778 recognized (North American voltages)
- CSA certified
- ANSI/NSF 61 certified
- Industry-standard NEMA mounting dimensions
Special Features:
- Compatible with Franklin SubDrive controllers for constant water pressure
Typical Applications:
- Homes
- Farms
- Restaurants
- Schools
- Small Factories
- Coalbed Methane Recovery
- Car Washes
- Fountains
- Built for dependable operation in 4" diameter or larger water wells
