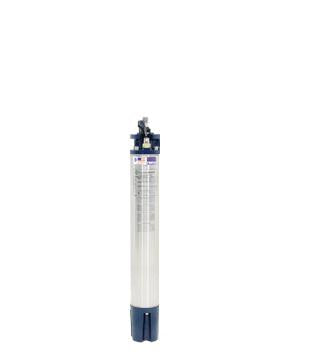

Franklin 2261118020 6" Submersible Motor 7.5HP 1PH 230V 60HZ Sand Fighter
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Franklin 2261118020 6" Submersible Motor. 7.5 HP, 1-Phase, 230V, 60Hz, Sand Fighter®.
The Franklin 6-inch Submersible Motor is built for dependable operation in 6" diameter or larger water wells.
Sand Fighter® construction is equipped with a robust sealing system for durability in wells with high levels of sand or other abrasives.
Specifications:
- Model Number: 2261118020
- Construction: Sand Fighter®
- Horsepower: 7.5 HP
- Phase: 1-Phase
- Voltage: 230 V
- Frequency: 60 Hz
- Service Factor: 1.15
- Motor Lead / Starting: DOL (3)
- Thrust Rating: 3500 lbs
- Shipping Weight: 123 lbs
Basic Features:
- Double flanged NEMA mounting design
- Stainless steel splined shaft
- StatorShield™, Franklin’s six-feature encapsulation system
- High-capacity, Kingsbury-type, water-lubricated thrust bearing
- Factory-filled with Franklin’s non-toxic water soluble fill solution
- Field replaceable lead using Franklin’s exclusive Water-Bloc™ technology
- Full 3,450 rpm 60 Hz design point
- External sand slinger on shaft
- Mechanical face seal at shaft exit
- Copper bar rotor
- All models variable frequency drive (VFD) compatible
- Single-phase models must be used with a Franklin Electric control box
