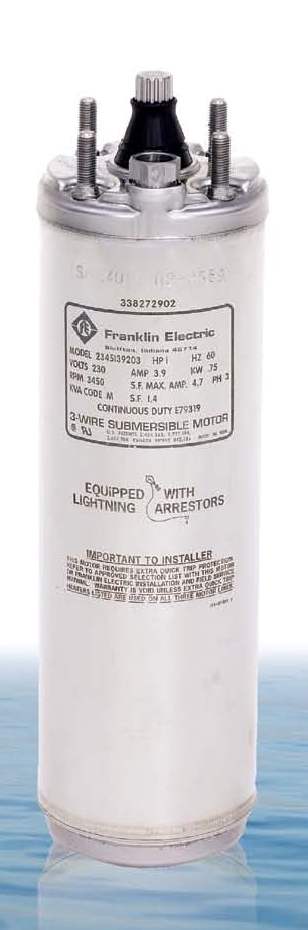

Franklin 2243018702G 4" High Thrust Submersible Well Motor, 2 HP, 230V, 1-Phase — Oil Stripper

Franklin 2243018702G 4" High Thrust Submersible Well Motor, 2 HP, 230V, 60 Hz, 1-Phase — Oil Stripper. Built on Franklin’s proven 4-inch submersible platform with a reinforced Kingsbury-type thrust bearing for demanding, high-thrust well applications.

Specifications:

• Model Number: 2243018702G
• Category: Oil Stripper
• Motor Series: High Thrust
• Horsepower: 2 HP
• Voltage: 230V
• Frequency: 60 Hz
• Phase: 1-Phase
• Wire Configuration: 3-Wire
• Service Factor: 1.25
• Full-Load Speed: 3450 RPM (2-pole)
• Thrust Bearing Rating: 1500 lb
• Motor Lead: Factory-installed lead included
• Diameter: 3.75"
• Shipping Weight: 46 lb

Oil Stripper models are engineered for geothermal and secondary oil-recovery wells, stripping hydrocarbon contamination from the motor’s cooling water to maintain performance in high-temperature, petroleum-exposed environments.

Basic Features:

• Corrosion-resistant stainless steel exterior
• Stainless steel splined shaft
• Hermetically-sealed windings
• StatorShield™ resin system
• Filter check valve
• Water lubrication
• Kingsbury-type thrust bearing
• Pressure-equalizing diaphragm
• Built-in lightning arrestors (all single-phase; 200 & 300 V three-phase)
• Removable Water-Bloc™ lead
• Franklin-manufactured control boxes available for single-phase motors
• UL 778 recognized (North American voltages)
• CSA certified
• ANSI/NSF 61 certified
• Industry-standard NEMA mounting dimensions

Special Features:

• Compatible with Pumptec® protection devices to guard against dry-run and other damaging installation conditions

Typical Applications:

• Homes
• Farms
• Restaurants
• Schools
• Small Factories
• Coalbed Methane Recovery
• Car Washes
• Fountains
• Built for dependable operation in 4" diameter or larger water wells
