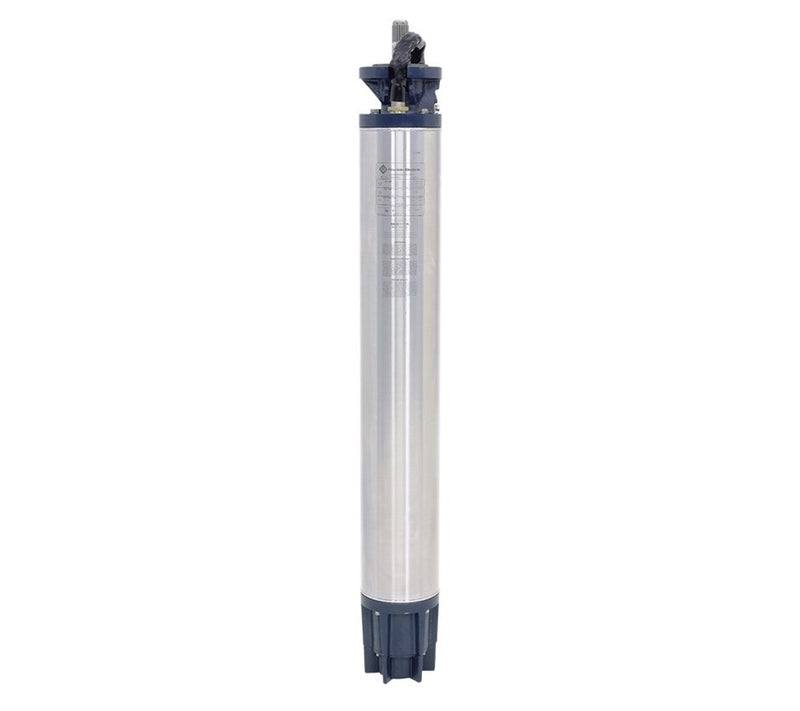

2396036041 Franklin 8" 75HP Water Well Submersible Motor 460V
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
This item is obsolete. Contact us for replacement
Franklin 2396036041 8" Submersible Water Well Motor, 75HP, 460/380V, 60/50 Hz, Three Phase
- Franklin's 8-inch submersible motors are typically used in large demanding water wells requiring high flow rates or deeper installations. These motors are tough, built to last, and come in a variety of construction options.
- These motors provide large amounts of water for irrigation, community water systems, and factories where large flows or pressures are required. We understand how important it is to produce reliable systems to avoid significant costs due to failure or downtime.
Features
- Double flanged NEMA mounting design
- Stainless steel splined shaft
- Stator Shield Franklin's six feature encapsulation system
- High Capacity Kingsbury type water lubricated thrust bearing
- Factory filled with Franklin's non-toxic water soluble fill solution
- Field replaceable lead using Franklin's exclusive water bloc technology
- External Sand Slinger on Shaft
- Mechanical face seal at shaft exit
- Copper bar rotor"
