2353RL75 Pump Saver Plus by SymCom 1 Phase

This item is obsolete

Call for replacement

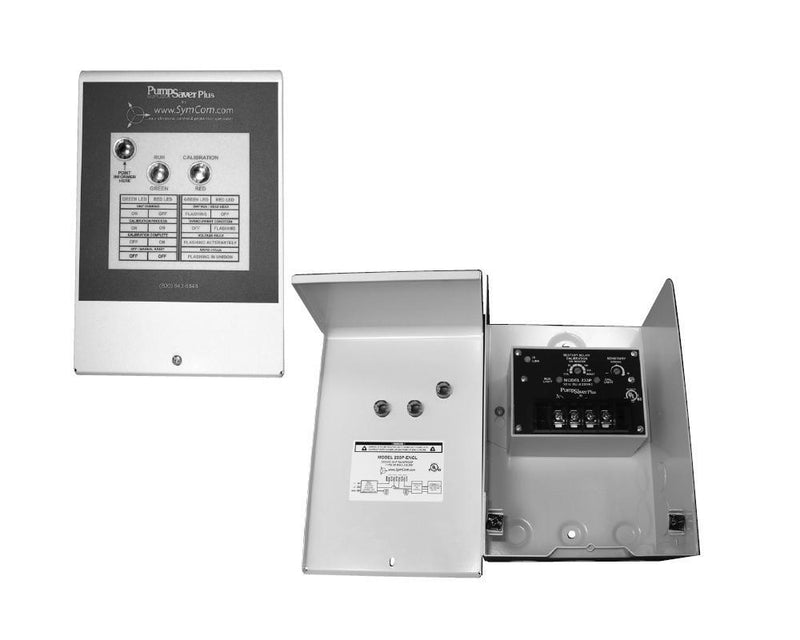

2353RL75 Pump Saver Plus by SymCom
1 Phase, 230 Volts 10 Horsepower
Models with a ...3RL suffix are installed in a NEMA 3R enclosure which has both Run and Calibrate lights.
Models contain a current transformer

PLUS MODEL FEATURES
Can be calibrated to specific pump / motor combinations and various conditions
• Will work with destaged pump models ending in 05R
Infrared LED communication with the INFORMER makes diagnostics simple
"Run Light" indicates the unit is functioning
"Run Light" and "Cal. Light" used as diagnostic indicators
Restart delay can be set up to 225 minutes or placed in manual reset mode
Micro-controller provides better accuracy and higher reliability than analog designs
Plus units feature more data storage memory which is viewable using an Informer
Sensitivity adjustment for dry well trip point
Installing PumpSaver Plus equipment on all your installations allows fast, simple troubleshooting with an Informer, eliminate guesswork, get all the data within minutes of arriving at a jobsite.
5-year warranty

APPLICATIONS – SINGLE PHASE ONLY
All submersible pumps, regardless of motor manufacturer
Centrifugal pumps
Circulating pumps
Cooling pumps
Environmental pumps
Residential water wells
Commercial water wells
Irrigation wells
Golf course systems
Protects From:
Dry well (run dry condition)
Flow restrictions (dead head)
Over current (jammed impeller)
Over voltage
Under voltage
Rapid cycling
