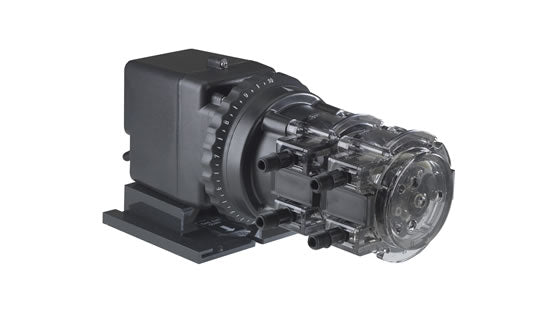

Stenner 100JL4A4STAA Classic 100 Double Head Adjustable Pump – 70 GPD, 25 PSI, 120V

100JL4A4STAA — Stenner Classic 100 Series Double Head Adjustable Metering Pump, 70 GPD, 25 PSI, 120V.

Stenner's Classic Series is the pump line that built the company's reputation: a simple, electromechanical peristaltic design that has been in continuous production for decades because it works and it's easy to service. The patented roller-and-tube pump head keeps the solution completely isolated from the motor and gearing, so there are no seals, valves, or check balls to wear out or clog. The pump is self-priming against full working pressure, won't lose its prime or vapor-lock on off-gassing chemicals like sodium hypochlorite, and can run dry without damage. The 100 Series pairs two independent pump heads on one motor, so a single unit can dose two compatible solutions at the same ratio, or simply deliver more volume than a single-head Classic pump allows. Output on both heads is adjusted together with an external feed-rate dial from roughly 5% to 100% of rated capacity. It's the standard choice for well water chlorination and disinfection, pH correction, iron and manganese oxidation ahead of a filter, corrosion and scale control, and commercial pool and spa sanitation, and is also widely used in cooling towers, irrigation, animal health, and industrial process water.

Specifications:

• Maximum Output: 70 GPD
• Maximum Working Pressure: 25 PSI
• Motor Voltage: 120V, 60Hz
• Suction/Discharge Tubing: 3/8" Santoprene
• Two independent pump heads driven by one motor for dual-chemical or higher-volume dosing
• External feed-rate dial adjusts output on both heads together, in 2.5% increments
• Self-priming against maximum working pressure; no foot valve required
• Won't lose prime or vapor-lock on off-gassing solutions, and can run dry
• Tool-free pump tube changes; no lubrication required
