Franklin 2760496463 60/50HP DR56 316SS Water Well Motor 415V
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

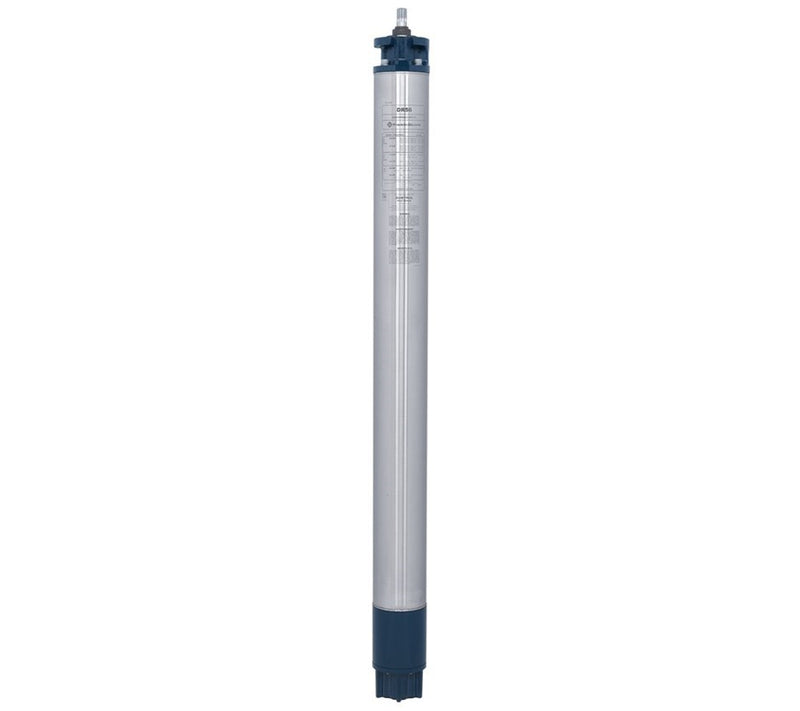

Franklin 2760496463 60/50 HP DR56 Model 316 Stainless Steel Water Well Motor with Subtrol 415V, 50 Hz, 10000 Thrust
Pumping applications are rapidly changing - and Franklin's DR56 motor was designed and built in response to many requests for a motor that can operate effectively under these evolving application demands. The DR56 6 inch motor utilizes our premium encapsulation process to allow continuous operation in water temperatures of up to 50 C (provided minimum allowable rates of flow past the motor are maintained).
Franklin's DR56 is the right choice for your demanding, high temperature 6 inch well applications.
Specifications
- Horsepower: 60/50
- Voltage: 415
- Hertz: 50
- Thrust: 10000
- Ambient Temperature: up to 122 F (50 C)
Hermetically sealed stator
Innovative high temperature winding encapsulation system
SAND FIGHTER Sealing System
Sand Fighter models are equipped with:
Franklin's exclusive Sand Fighter Sealing System for sand or other abrasives well water.
Franklin's exclusive on winding SubTrol heat sensor for use with SubMonitor.
