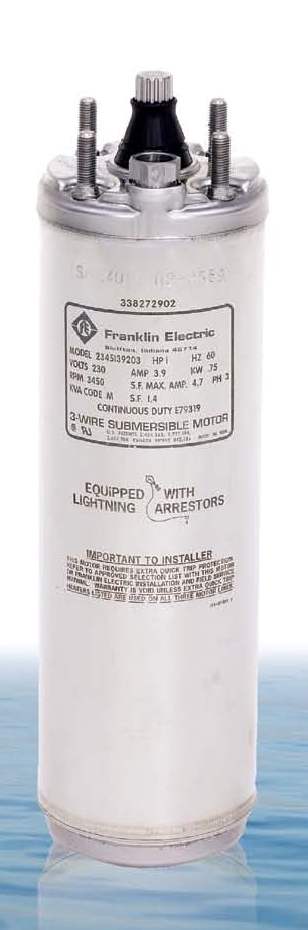

Franklin 2445570117GS 4" Super Stainless Submersible Well Motor, 3/4 HP, 220V, 1-Phase

Franklin 2445570117GS 4" Super Stainless Submersible Well Motor, 3/4 HP, 220V, 50 Hz, 1-Phase. The Franklin 4-inch Super Stainless motor has been the driving force behind residential and light commercial submersible pumps for decades. Franklin Electric is the industry’s most trusted residential pump motor.

Specifications:

• Model Number: 2445570117GS
• Category: Water Well
• Motor Series: Super Stainless
• Horsepower: 3/4 HP
• Voltage: 220V
• Frequency: 50 Hz
• Phase: 1-Phase
• Wire Configuration: 2-Wire
• Service Factor: 1.0
• Full-Load Speed: 2875 RPM (2-pole)
• Thrust Bearing Rating: 300 lb
• Motor Lead: Sold without lead — order lead/cable separately
• Diameter: 3.75"
• Shipping Weight: 21 lb

Basic Features:

• Corrosion-resistant stainless steel exterior
• Stainless steel splined shaft
• Hermetically-sealed windings
• StatorShield™ resin system
• Filter check valve
• Water lubrication
• Kingsbury-type thrust bearing
• Pressure-equalizing diaphragm
• Built-in lightning arrestors (all single-phase; 200 & 300 V three-phase)
• Removable Water-Bloc™ lead
• Franklin-manufactured control boxes available for single-phase motors
• UL 778 recognized (North American voltages)
• CSA certified
• ANSI/NSF 61 certified
• Industry-standard NEMA mounting dimensions

Special Features:

• Two-wire design is a split-phase motor with integral starting components — no separate control box required; features Franklin's patented 2-wire BIAC starting switch, which provides reverse impact torque to aid starting and prevents extreme fast cycling
• Compatible with Pumptec® protection devices to guard against dry-run and other damaging installation conditions

Typical Applications:

• Homes
• Farms
• Restaurants
• Schools
• Small Factories
• Coalbed Methane Recovery
• Car Washes
• Fountains
• Built for dependable operation in 4" diameter or larger water wells
