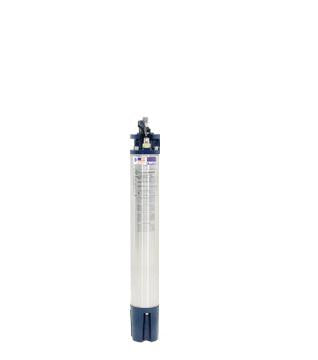

Franklin 2366604020 6" Submersible Motor 3PH 5HP 380V 60HZ
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Franklin 2366604020 6" Super Stainless Submersible Motor. 5 HP, 3-Phase, 380V, 60Hz.
The Franklin 6-inch Super Stainless motor has been the driving force behind residential and light commercial submersible pumps for decades, and has proven to be the industry’s most trusted residential pump motor. These motors are built for dependable operation in 6" diameter or larger water wells.
Specifications:
- Model Number: 2366604020
- Construction: Super Stainless
- Horsepower: 5 HP
- Phase: 3-Phase
- Voltage: 380 V
- Frequency: 60 Hz
- Note: exact factory ordering data (thrust rating, motor lead type, shipping weight) for this specific SKU could not be verified against the current Franklin Electric 6" Submersible Motors catalog; specifications above are drawn from the existing product listing only.
Features:
- Corrosion-resistant stainless steel exterior
- Stainless steel splined shaft
- Hermetically-sealed windings
- StatorShield resin system
- Filter check valve
- Water lubrication
- Kingsbury-type thrust bearing
- Pressure-equalizing diaphragm
- Built-in lightning arrestors (All single-phase; 200 & 300 V three-phase)
- Removable Water Bloc lead
- Franklin-manufactured control boxes available for single-phase motors
- UL 778 recognized (North American voltages)
- CSA certified
- ANSI/NSF 61 certified
- Industry standard NEMA mounting dimensions
Typical Applications:
- Homes
- Farms
- Restaurants
- Schools
- Small Factories
- Coalbed Methane Recovery
- Car Washes
- Fountains
