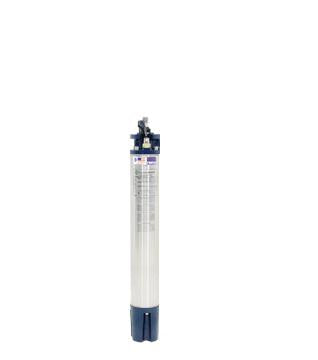

Franklin 2366144020 6" Submersible Motor 20HP 3PH 460/380V 60/50HZ 316 SS w/SubTrol
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Franklin 2366144020 6" Submersible Motor. 20 HP, 3-Phase, 460/380V, 60/50Hz, 316 SS w/SubTrol™.
The Franklin 6-inch Submersible Motor is built for dependable operation in 6" diameter or larger water wells.
Special 316 stainless steel construction for acid, low pH, and seawater applications; includes an on-winding SubTrol™ heat sensor for use with SubMonitor.
Specifications:
- Model Number: 2366144020
- Construction: 316 SS w/SubTrol™
- Horsepower: 20 HP
- Phase: 3-Phase
- Voltage: 460/380 V
- Frequency: 60/50 Hz
- Service Factor: 1.15/1.0
- Motor Lead / Starting: DOL (3)
- Thrust Rating: 3500 lbs
- Shipping Weight: 145 lbs
Basic Features:
- Double flanged NEMA mounting design
- Stainless steel splined shaft
- StatorShield™, Franklin’s six-feature encapsulation system
- High-capacity, Kingsbury-type, water-lubricated thrust bearing
- Factory-filled with Franklin’s non-toxic water soluble fill solution
- Field replaceable lead using Franklin’s exclusive Water-Bloc™ technology
- Full 3,450 rpm 60 Hz design point
- External sand slinger on shaft
- Mechanical face seal at shaft exit
- Copper bar rotor
- All models variable frequency drive (VFD) compatible
