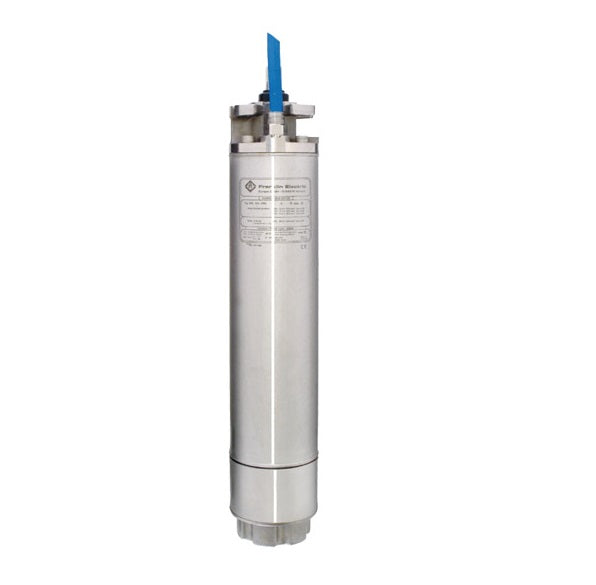

Franklin 2396242241 8" Submersible Water Well 316 Stainless Steel Motor. 100 HP, 460/380V, 60/50 Hz, Three Phase.
Franklin's 8-inch submersible motors are typically used in large demanding water wells requiring high flow rates or deeper installations. These motors are tough, built to last, and come in a variety of construction options.
These motors provide large amounts of water for irrigation, community water systems, and factories where large flows or pressures are required. We understand how important it is to produce reliable systems to avoid significant costs due to failure or downtime.
316 Stainless Steel construction is equipped with Franklin’s exclusive Sand Fighter® Sealing System for sand or other abrasives well water, and includes an on-winding SubTrol™ heat sensor for use with SubMonitor.
Specifications:
- Model Number: 2396242241
- Construction: 316 Stainless Steel
- Horsepower: 100 HP
- Phase: 3-Phase
- Voltage: 460/380 V
- Frequency: 60/50 Hz
- Note: exact factory ordering data (thrust rating, motor lead type, shipping weight) for this specific SKU could not be verified against the current Franklin Electric 8" Submersible Motors catalog; specifications above are drawn from the existing product listing only.
Features:
- Double flanged NEMA mounting design
- Stainless steel splined shaft
- Stator Shield Franklin's six feature encapsulation system
- High Capacity Kingsbury type water lubricated thrust bearing
- Factory filled with Franklin's non-toxic water soluble fill solution
- Field replaceable lead using Franklin's exclusive water bloc technology
- External Sand Slinger on Shaft
- Mechanical face seal at shaft exit
