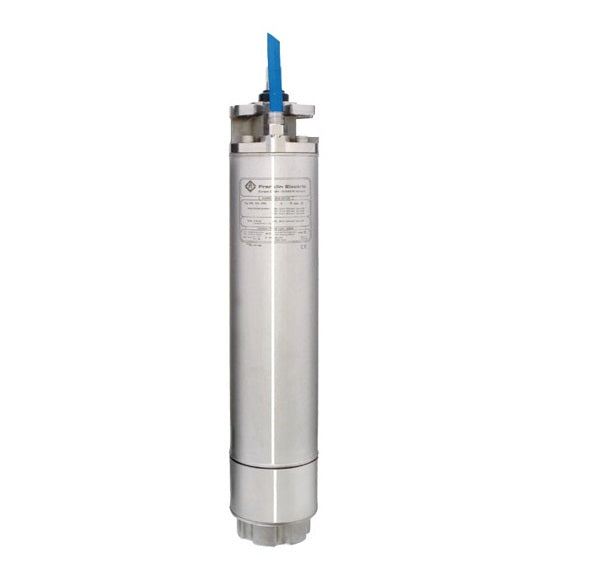

Franklin 2396036241 8" Submersible Motor 75HP 3PH 460/380V 60/50HZ 316 SS
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Franklin 2396036241 8" Submersible Motor. 75 HP, 3-Phase, 460/380V, 60/50Hz, 316 SS.
The Franklin 8" Submersible Motor is built for dependable operation in vertical 8" diameter or larger water wells.
Special 316 stainless steel construction, equipped with Franklin’s exclusive Sand Fighter® sealing system for sand or other abrasives.
Specifications:
- Model Number: 2396036241
- Construction: 316 SS
- Horsepower: 75 HP
- Phase: 3-Phase
- Voltage: 460/380 V
- Frequency: 60/50 Hz
- Service Factor: 1.15/1.0
- Motor Lead / Starting: DOL (3)
- Thrust Rating: 10000 lbs
- Shipping Weight: 430 lbs
Basic Features:
- Double flanged NEMA mounting design
- Stainless steel splined shaft
- StatorShield™ six feature encapsulation system
- High-capacity, Kingsbury-type, water lubricated thrust bearing
- Factory filled with Franklin’s non-toxic water soluble fill solution
- Field replaceable lead using Franklin’s exclusive Water-Bloc™ technology
- Full 3,525 rpm 60 Hz design point
- External sand slinger on shaft
- Mechanical face seal at shaft exit
- Copper bar rotor
- All models are variable frequency drive (VFD) compatible
- Franklin’s exclusive on-winding SubTrol™ heat sensor for use with SubMonitor Connect™
