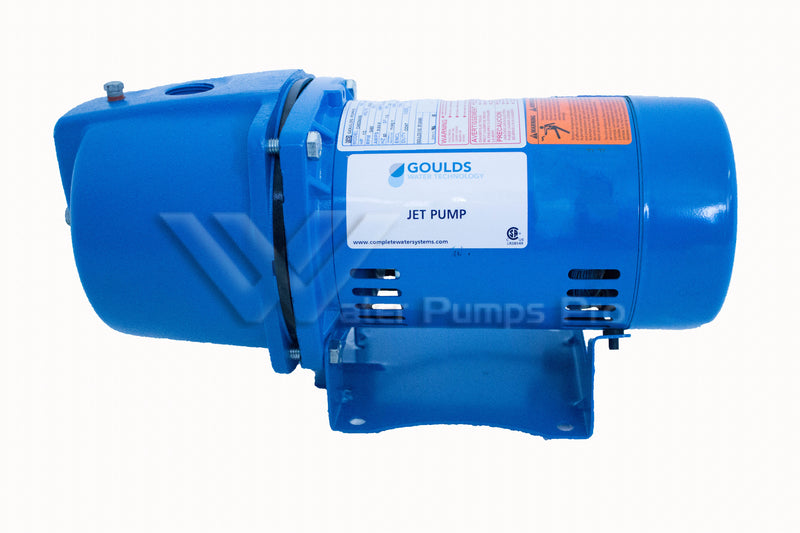

Goulds JRS7 Shallow Well Jet Pump – JRS Series, 3/4 HP, 115/230V, Single Phase, 22.5 GPM at 5 ft (30 PSI), Cast Iron Body
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Goulds JRS7 is a 3/4 HP, 115/230-volt, single-phase compact shallow well jet pump with an integral shallow well jet built into the casing, so no separate adapter is needed. Suction is 1-1/4" NPT and discharge is 1" NPT.
- Horsepower: 3/4 HP
- Voltage: 115/230V, Single-Phase
- Capacity: 22.5 GPM at 30 PSI, 5 ft suction lift
- Pressure Switch: 30-50 PSI (AS4)
- Pipe Connections: 1-1/4" NPT suction, 1" NPT discharge
- Overall Length ("C" Max): 11.56"
- Shipping Weight: 42 lbs
- Maximum Liquid Temperature: 140°F (60°C)
Construction & Features:
- Design: Compact -- integral shallow well jet built into the casing, eliminating the need for a separate adapter
- Casing: Cast iron, back pullout serviceable design, with an O-ring casing seal and a drain plug for winterizing
- Impeller: FDA-compliant, glass-filled engineered composite
- Diffuser: Food-grade, glass-filled engineered composite
- Tubing & Fittings: FDA-compliant, UV-resistant engineered plastic with hand-tight O-ring connections; nozzle clean-out plug
- Motor: Two-compartment design; NEMA service factors, stainless steel shaft
- Finish: Electrocoat baked paint
- Certification: NSF/ANSI 61 & 372 listed, CSA File #LR38549
Applications: Homes, cottages, and booster service.
Installation note: a pressure tank is required on all systems. Wiring must be performed by a qualified electrician in accordance with local codes and the National Electrical Code.
