Goulds A2X53 FS-MAM 30' Bare

Goulds A2X53 is a narrow-angle MilliAmpMaster control switch with a 30-foot cord, bare lead, normally open (pump-down) operation.

• Part Number: A2X53
• Switch Family: MilliAmpMaster
• Switch Category: Control Switch (Narrow Angle - Panel/Alarm Use Only)
• Cord Length: 30'
• Cord Style: Bare Lead
• Switch Action: Normally Open (NO) - Pump Down
• Rating: Low-current control switch: 125 VAC max load 0.1A (min load 0.16mA); 30 VDC max load 0.1A (min load 0.16mA); 5 VDC min load 1mA.

Features and Benefits:

• Sealed Contacts: Mechanically activated, snap-action, sealed gold cross-point contacts designed to activate low-current control panels and alarms.
• Low-Voltage Control: Narrow-angle control for low-voltage AC or DC applications.
• Certifications: UL Listed for use in non-potable water and sewage; CSA Certified.

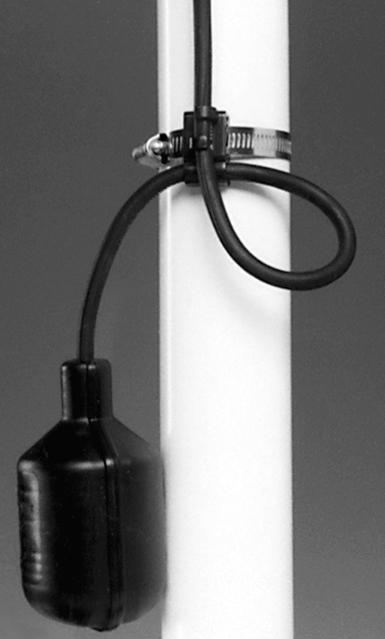

• Mounting: Mounting clamp for attaching to a discharge pipe is standard.
• Stable Operation: Not sensitive to rotation.
• Submergence Rating: Maximum submergence or water depth of 30 feet (9 meters), 13 psi.
• Cord: Flexible 18 gauge, 2-conductor SJOW water-resistant cable.
• Housing: Impact and corrosion-resistant polypropylene float housing for use in sewage and water up to 140 degrees F.
• Identification: Float comes with a blue cap for easy identification.

Applications: A narrow-angle control switch designed to activate a control or alarm panel - it signals pump operation but cannot handle a pump's full starting or running amperage on its own, so it must be used with a control panel rather than wired directly to a pump.
