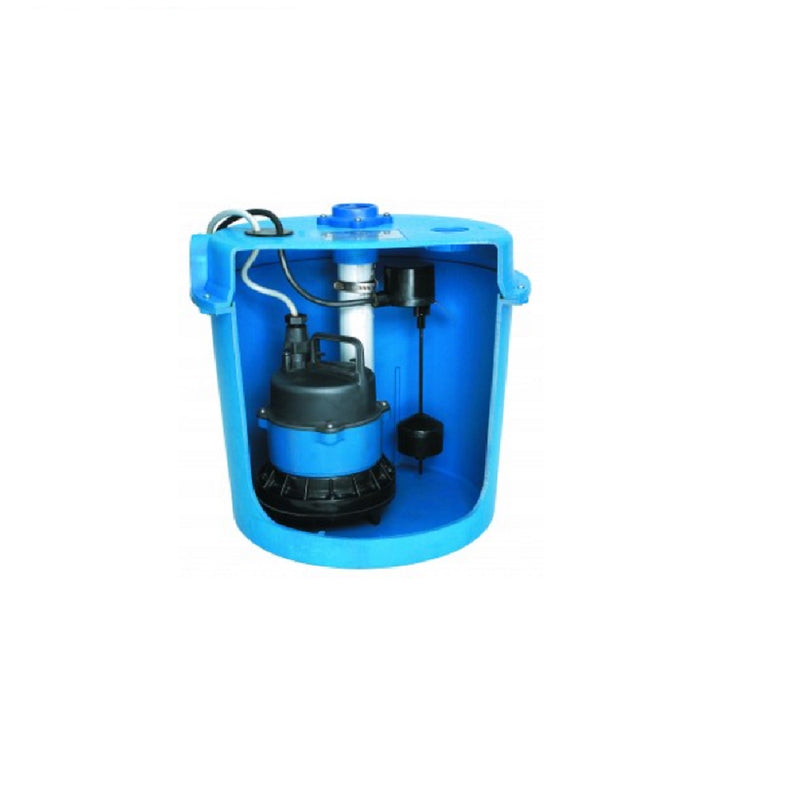

Goulds SDS1 - 4/10 HP 115V Single-Phase Submersible Sink Drain System

The Goulds SDS1 is a 4/10 HP, 115V single-phase submersible sink drain system pump from Goulds SDS Sink Drain System, part of Xylem’s Goulds Water Technology line. It is rated to handle solids up to 3/4" maximum through a 1-1/2" NPT (1-1/2" Schedule 40 PVC internal discharge pipe) discharge, running at 1550 RPM. A fully assembled, ready-to-install package built around the Goulds EP0411 pump, basin, cover, and level switch. The table below shows this pump’s flow rate at four fixed total dynamic head (TDH) points, so you can match it to your specific lift and distance requirements.

• Horsepower: 4/10 HP
• Voltage / Phase: 115V Single-Phase, 60 Hz
• Speed: 1550 RPM
• Discharge: 1-1/2" NPT (1-1/2" Schedule 40 PVC internal discharge pipe)
• Solids Handling: 3/4" maximum
• Power Cord: 10 ft

Flow Rate at Fixed Head (TDH):

• 10 ft. TDH: 45 GPM
• 15 ft. TDH: 33 GPM
• 20 ft. TDH: 18 GPM
• 25 ft. TDH: not rated at this head (shutoff head is approximately 24-27 ft)

Construction:

• Pump: Goulds EP0411, 4/10 HP submersible effluent pump, CSA listed, capable of running dry without damage to components
• Basin & Cover: 10-gallon structural foam basin and cover
• Level Switch: A2H11 Vertimaster vertical level switch with a 10 ft cord and piggyback plug, UL and CSA listed
• Power Cable: severe-duty rated, oil and water resistant

Applications: Laundry trays, wet bar sinks, air conditioning condensate or dehumidifier water, residential dishwashers, and beautician sinks.

Warnings: This pump must be connected to electrical service protected by a Ground Fault Circuit Interrupter (GFCI) where required by code. Failure to do so may result in serious personal injury or death and property damage.

Do not run this pump dry for extended periods or operate it outside its rated flow and head range. Follow the manufacturer’s wiring, grounding, and float-switch/control-panel instructions for your specific installation.
