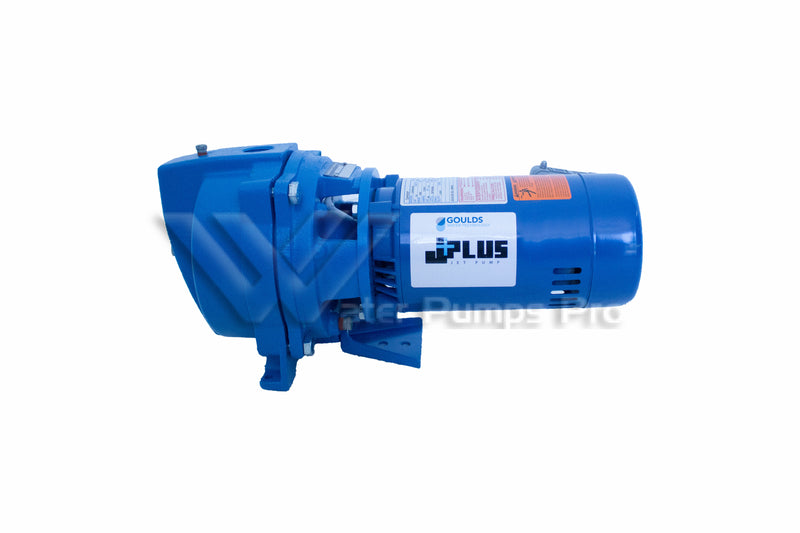

Goulds J10S Shallow Well Jet Pump – JS+ Series, 1 HP, 115/230V, Single Phase, 24.8 GPM at 5 ft (30 PSI), Cast Iron Body
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Goulds J10S is a 1 HP, 115/230-volt, single-phase shallow well jet pump with an integral shallow well adapter built into the casing, so no separate adapter is needed. It is a compact, ready-to-install choice for homes and cottages on a shallow well. Suction is 1-1/4" NPT and discharge is 1" NPT.
- Horsepower: 1 HP
- Voltage: 115/230V, Single-Phase
- Capacity: 24.8 GPM at 30 PSI, 5 ft suction lift
- Pressure Switch: 30-50 PSI (AS4), preset
- Pipe Connections: 1-1/4" NPT suction, 1" NPT discharge
- Length: 18-3/4"
- Shipping Weight: 50 lbs
- Maximum Liquid Temperature: 140°F (60°C)
Construction & Features:
- Design: Compact -- integral shallow well adapter built into the casing, eliminating the need for a separate adapter
- Casing: Cast iron, back pullout serviceable design
- Impeller: FDA-compliant, glass-filled engineered composite
- Diffuser: Bolt-down, food-grade glass-filled composite with stainless steel wear ring
- Tubing & Fittings: Corrosion-resistant, UV-resistant engineered plastic with hand-tight O-ring connections; nozzle clean-out plug in the pump case
- Motor: Two-compartment design; NEMA standard, stainless steel shaft
- Mechanical Seal: Diaphragm-protected -- never runs dry; excellent air-handling and re-prime ability
- Finish: Electrocoat baked paint
- Certification: NSF/ANSI 61 & 372 listed (jet pump and shallow well components)
Applications: Homes, cottages, and booster service.
Installation note: a pressure tank is required on all systems. Wiring must be performed by a qualified electrician in accordance with local codes and the National Electrical Code.
